TruNorth® Solid Core Composite Decking from $4.25/ft - US West

Square Edge TruNorth® Solid Core boards are a fully encapsulated solid core board that is available in 12 colors and backed by our 25-year warranty for fade and stain resistance. Square Edge, typically used for stairs/trim with screws, is only available in 16 and 20 ft lengths. There is no grooved board available for US West region, you can use enviroboards for grooved.

Installation:

For square edge installation, use the Stainless Steel Screws and color-coded plugs and the composite driving tool. Installation instructions can be found here.

Need a deck builder? Contact us.

TruNorth Solid Core Specifications:

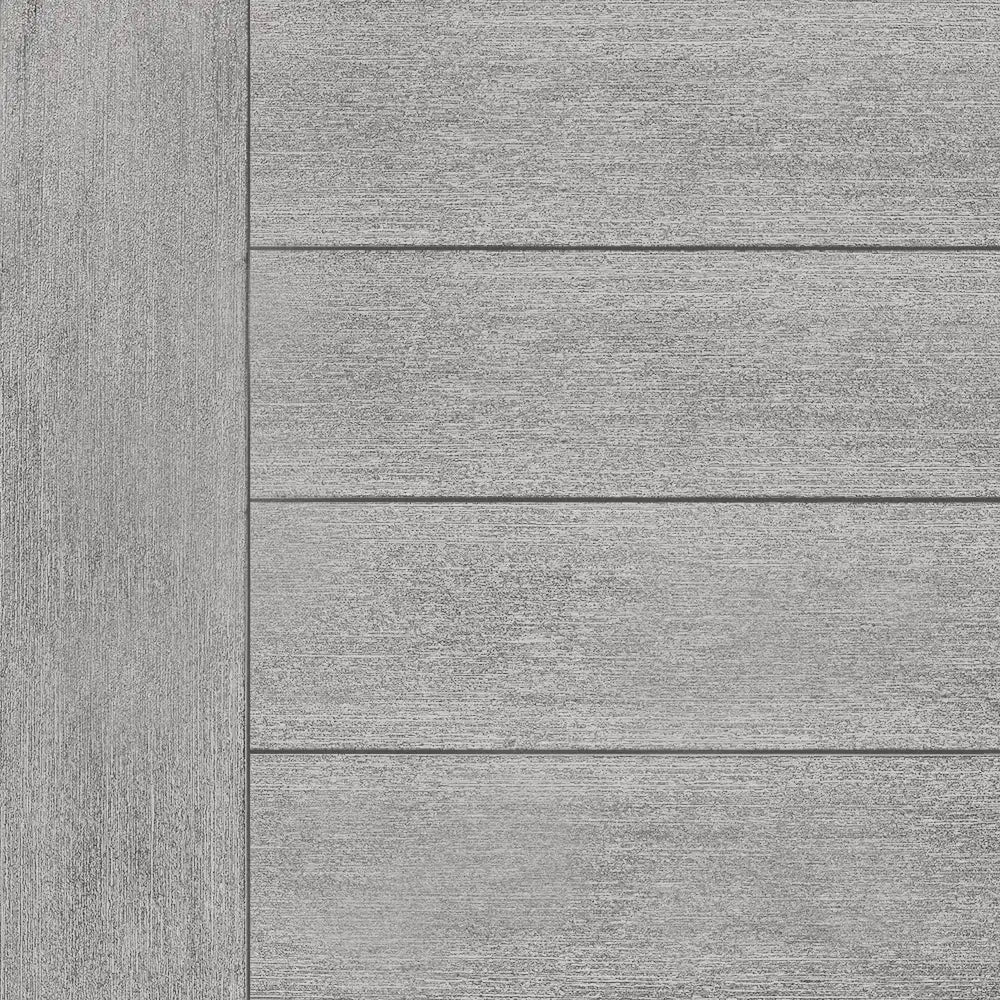

• Solid Color - $4.25 USD/linear foot (Stone Grey Mocha, Caramel, Red Bordeaux, Sand, and Brulee)
• Variegated Colors - $4.25 USD/linear foot (Hazelwood, Ash Grey, Tigerwood, Amazon Grey, Tropical Walnut, and Brazilian Cherry)

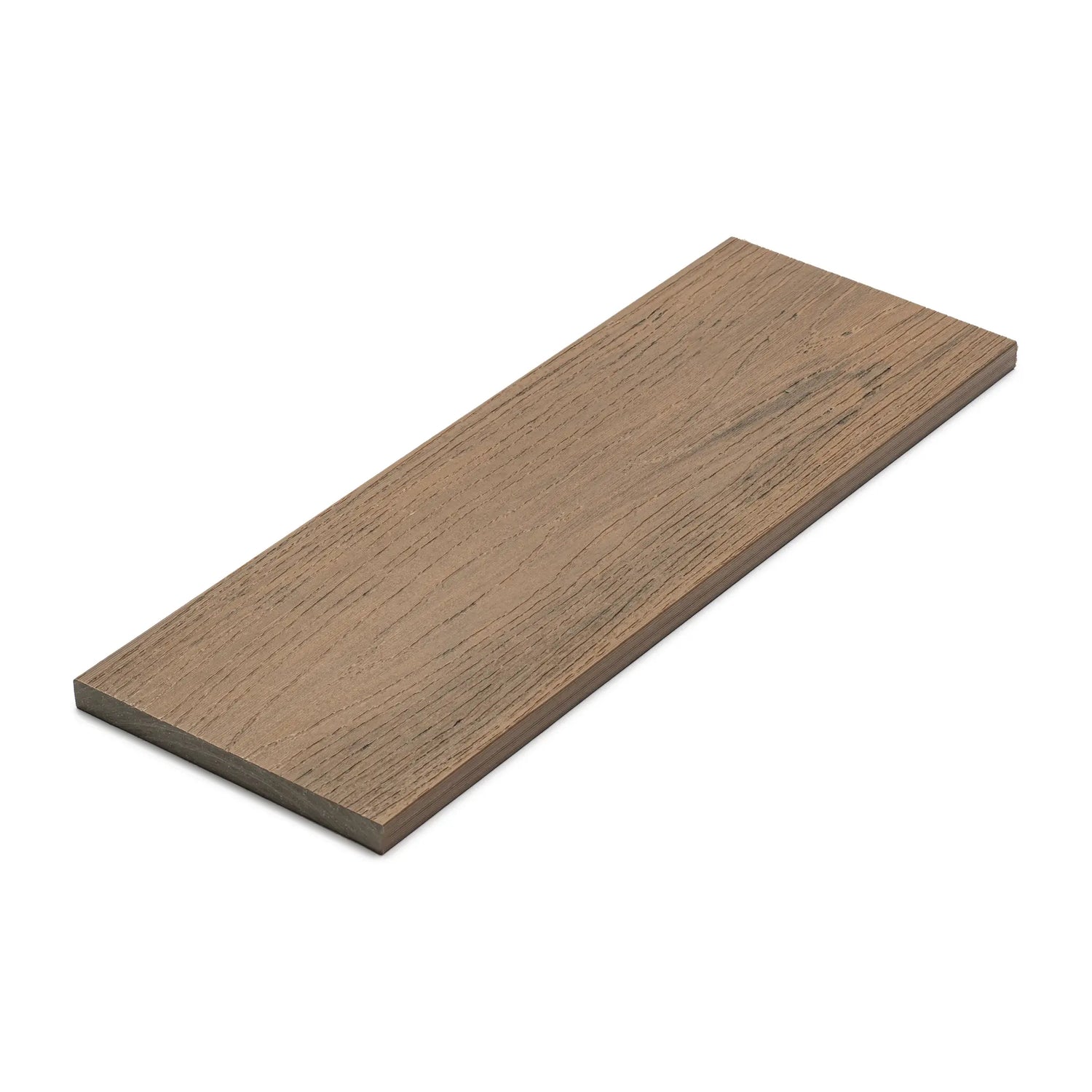

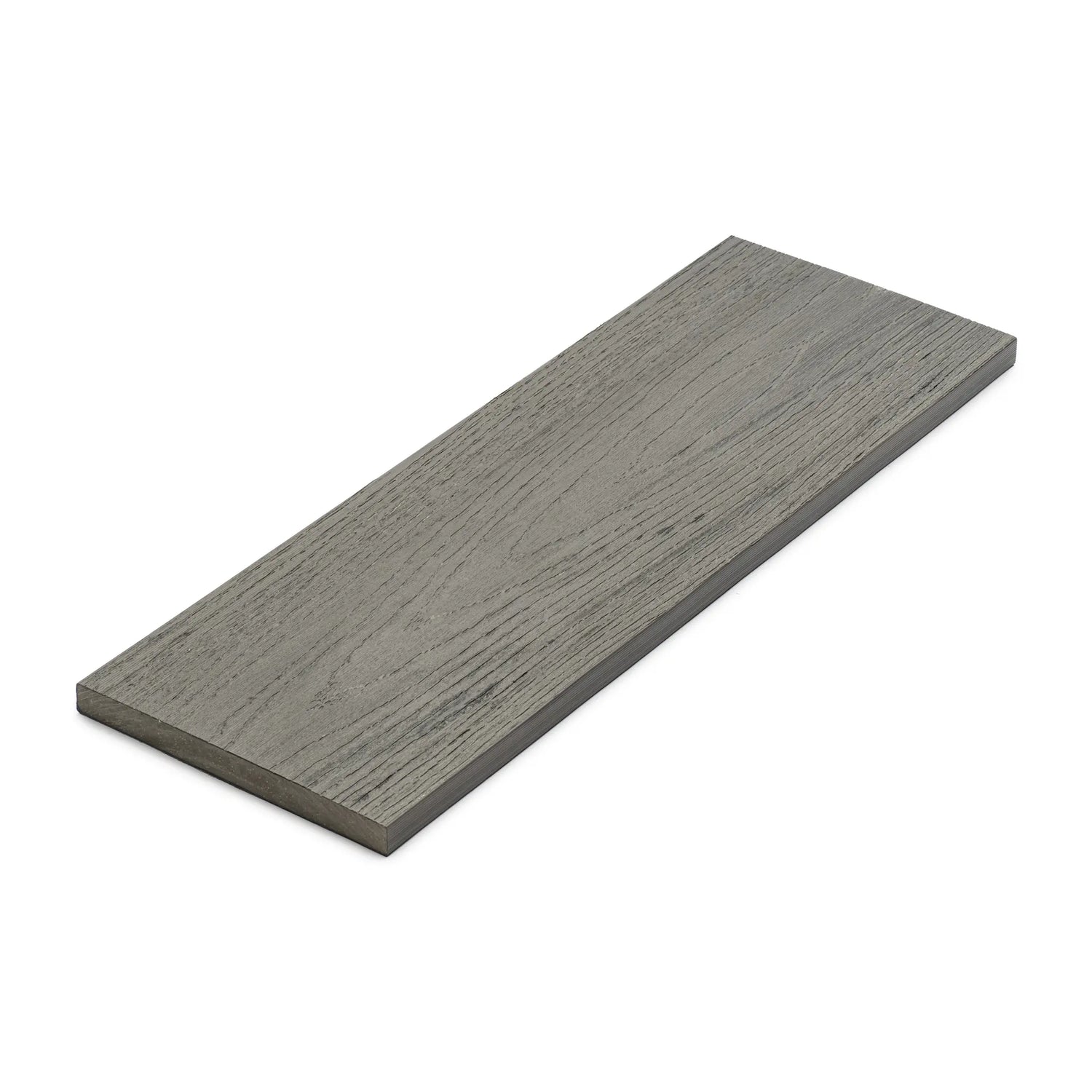

• Fascia $5.95/ft
• Actual colour may vary slightly from website image
• Sizes (W x H x L): 5-1/8 x 1 x 12', 5-1/8 x 1 x 16', 5-1/8 x 1 x 20' . (5-1/4” wide for Gen 2)
• Including installation clip, boards are 5-5/16 inches wide.
• Fascia boards are 1 x 8 x 12' Nominal Size (Actual is 5/8" x 7 1/2" x 12')
• Square boards only come in 16' and 20' lengths
• All boards come 1-2" longer than specified in case the ends get damaged during shipping. You can lay out the boards upon installation and make one cut using a chalk line to ensure consistency in length and ensure that they are all cut perpendicular.
• Weight: 12' board - 27.96 lbs, 16' board - 37.28 lbs, 20' board - 46.6 lbs

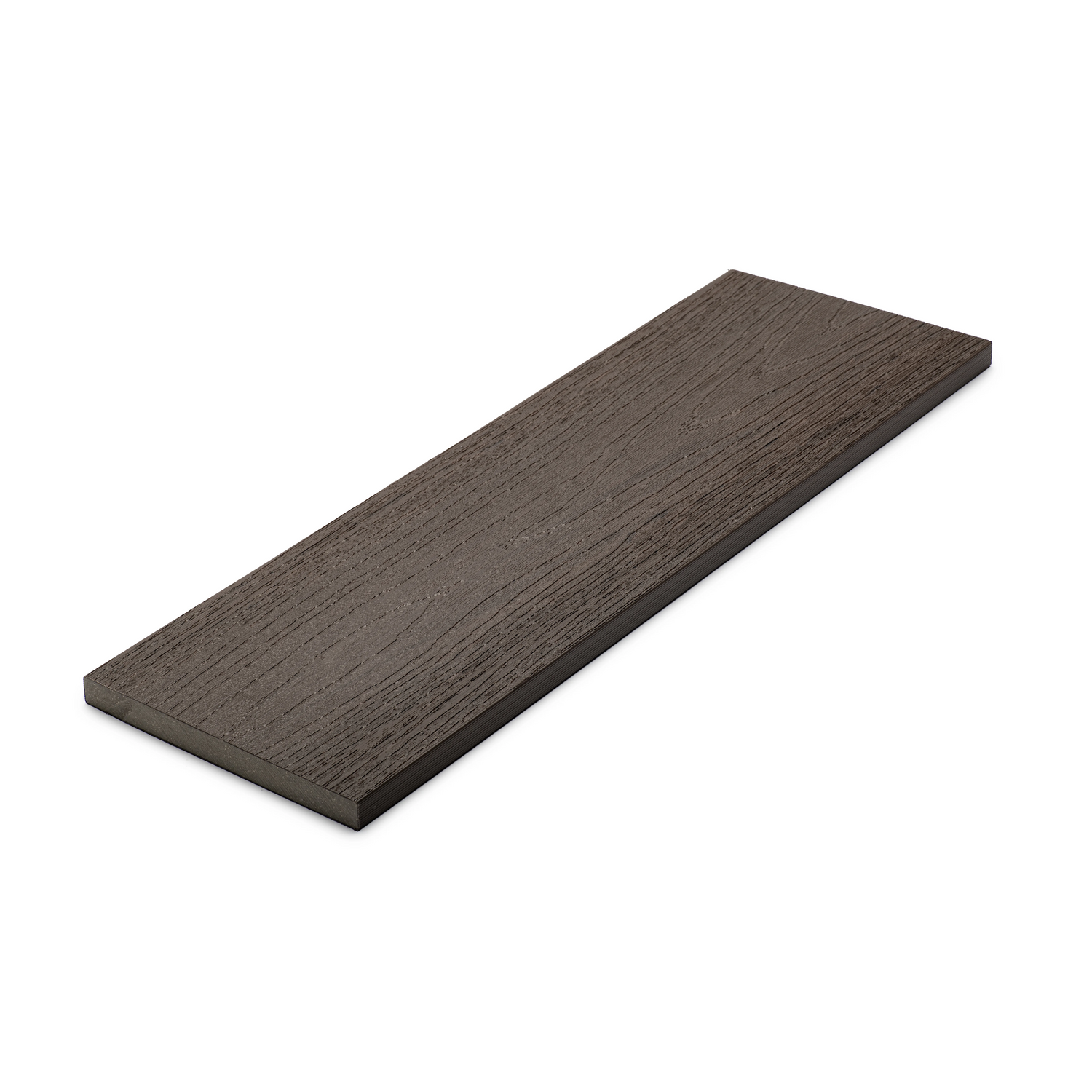

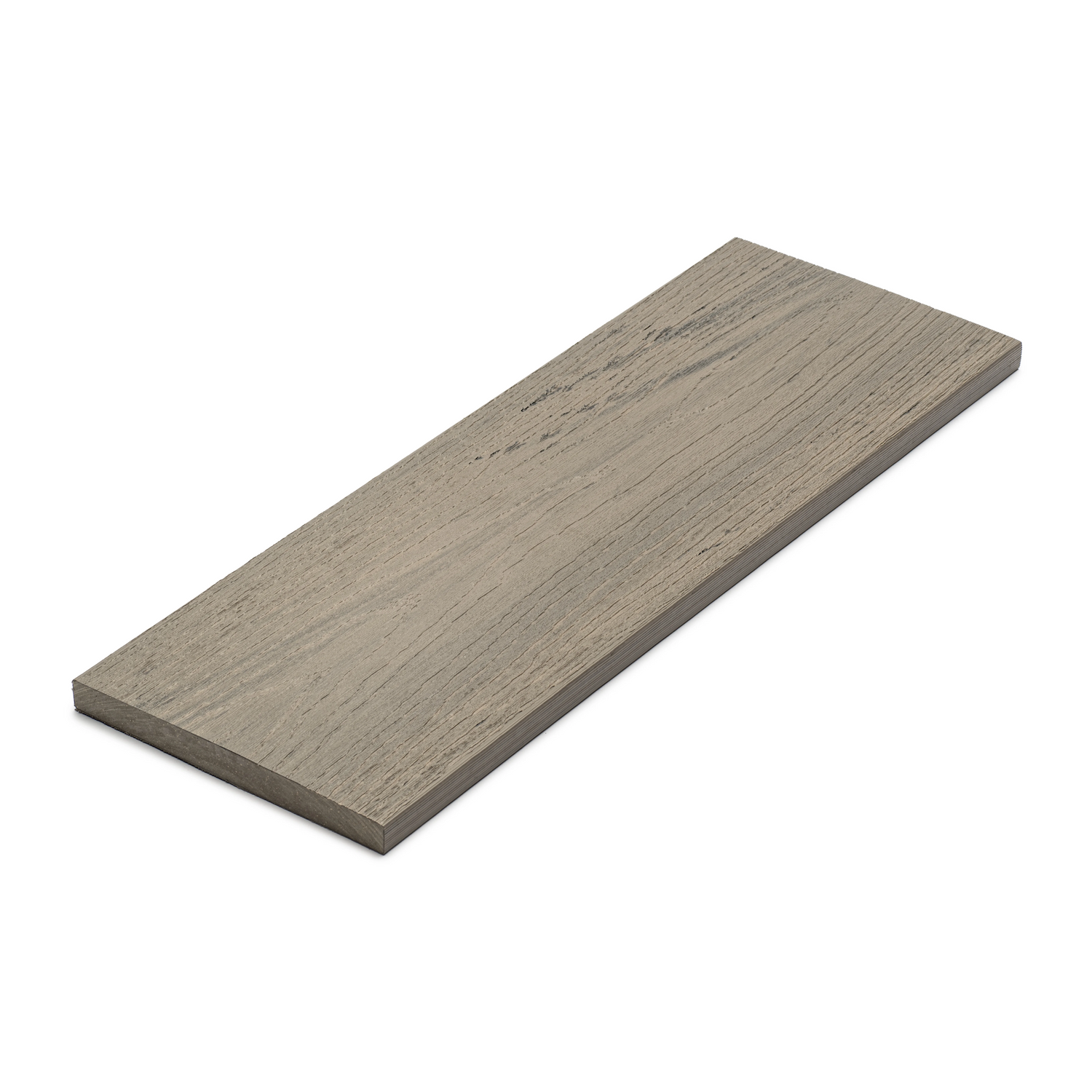

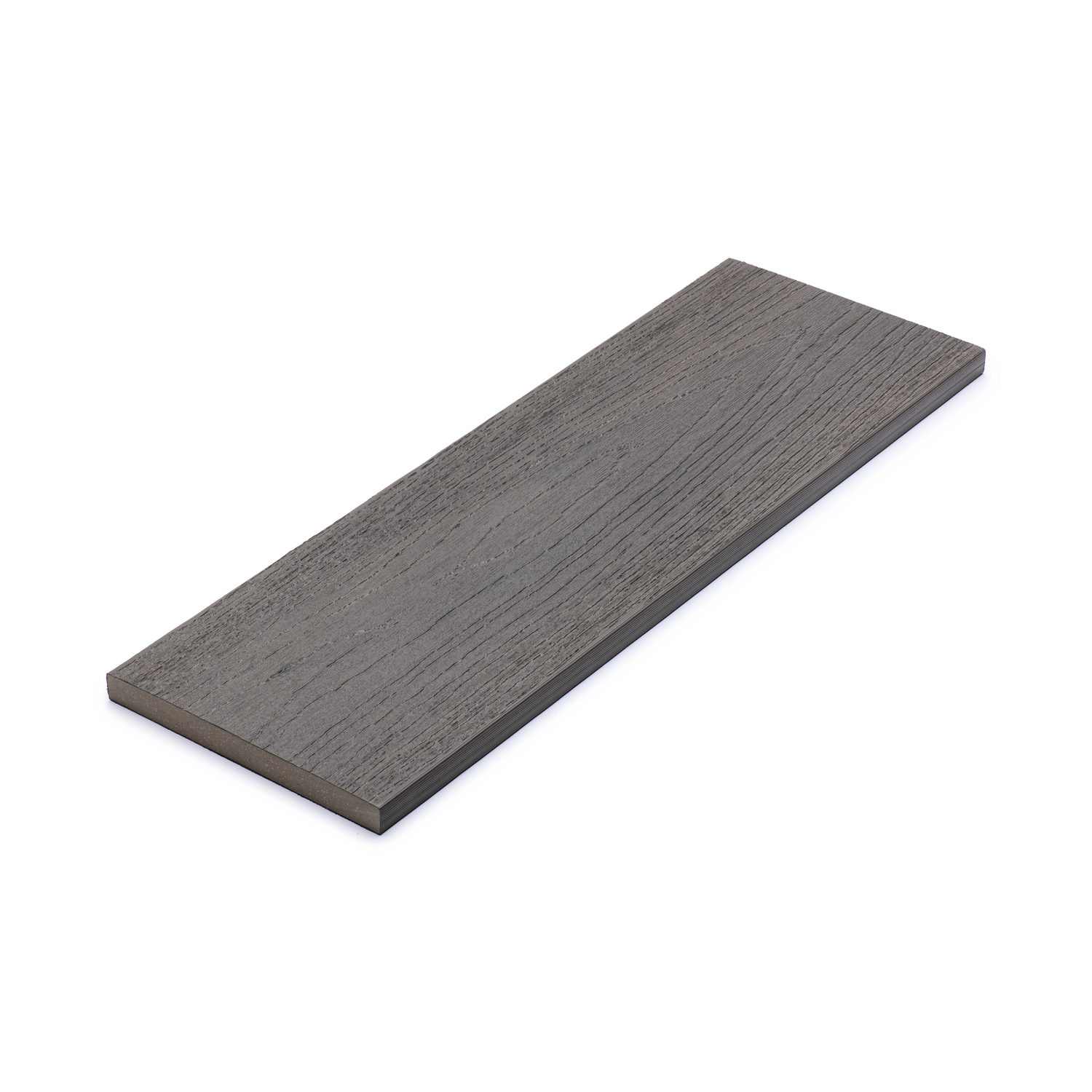

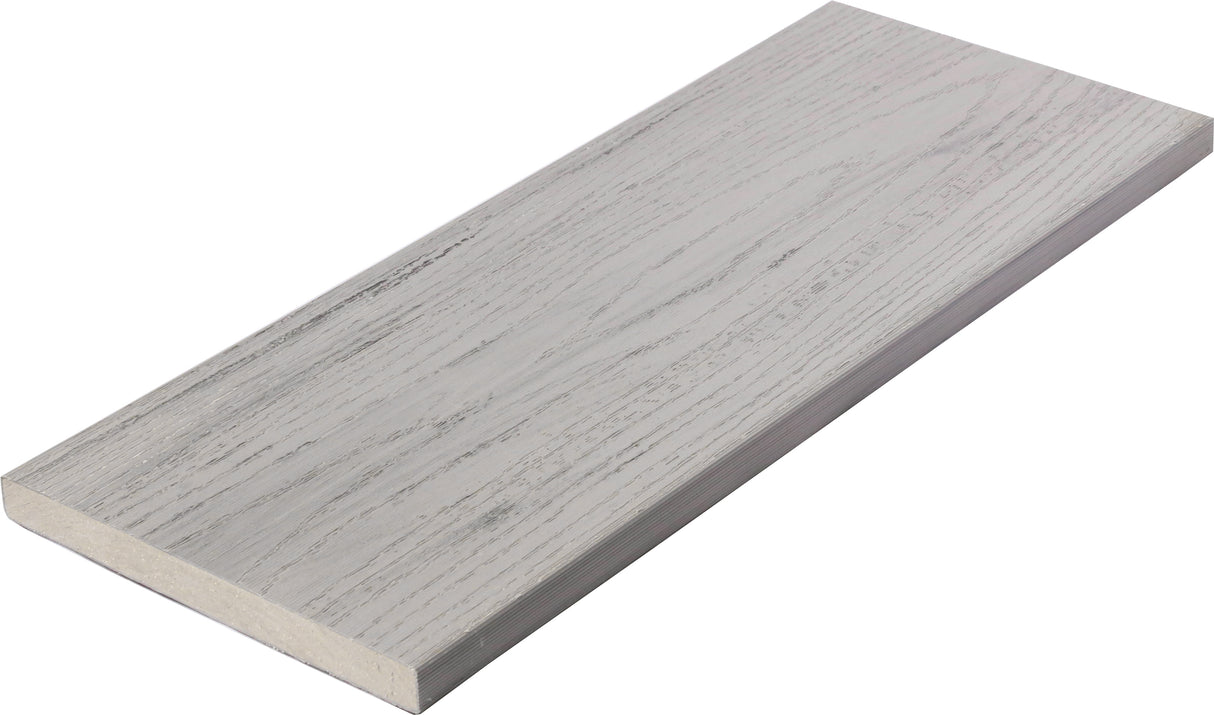

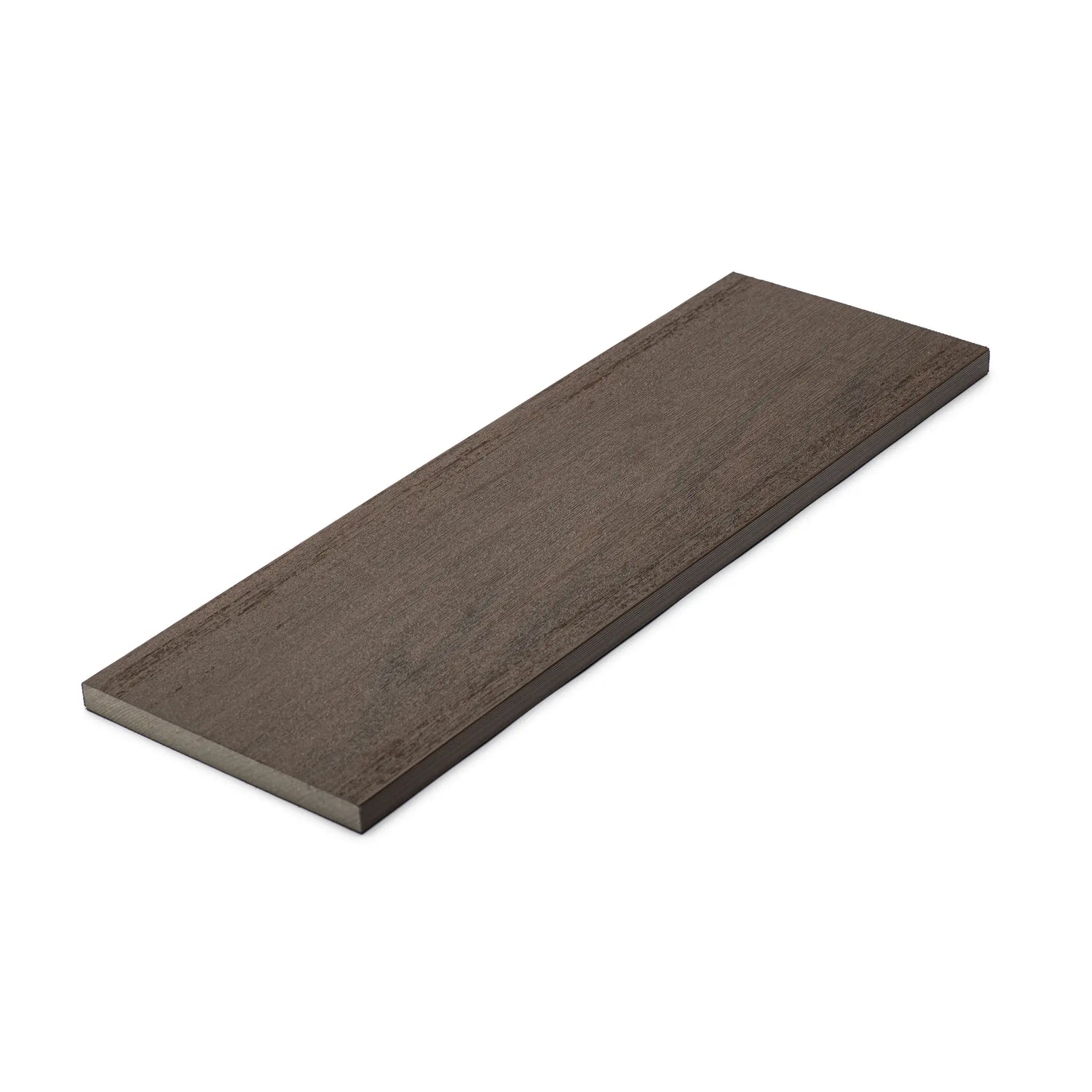

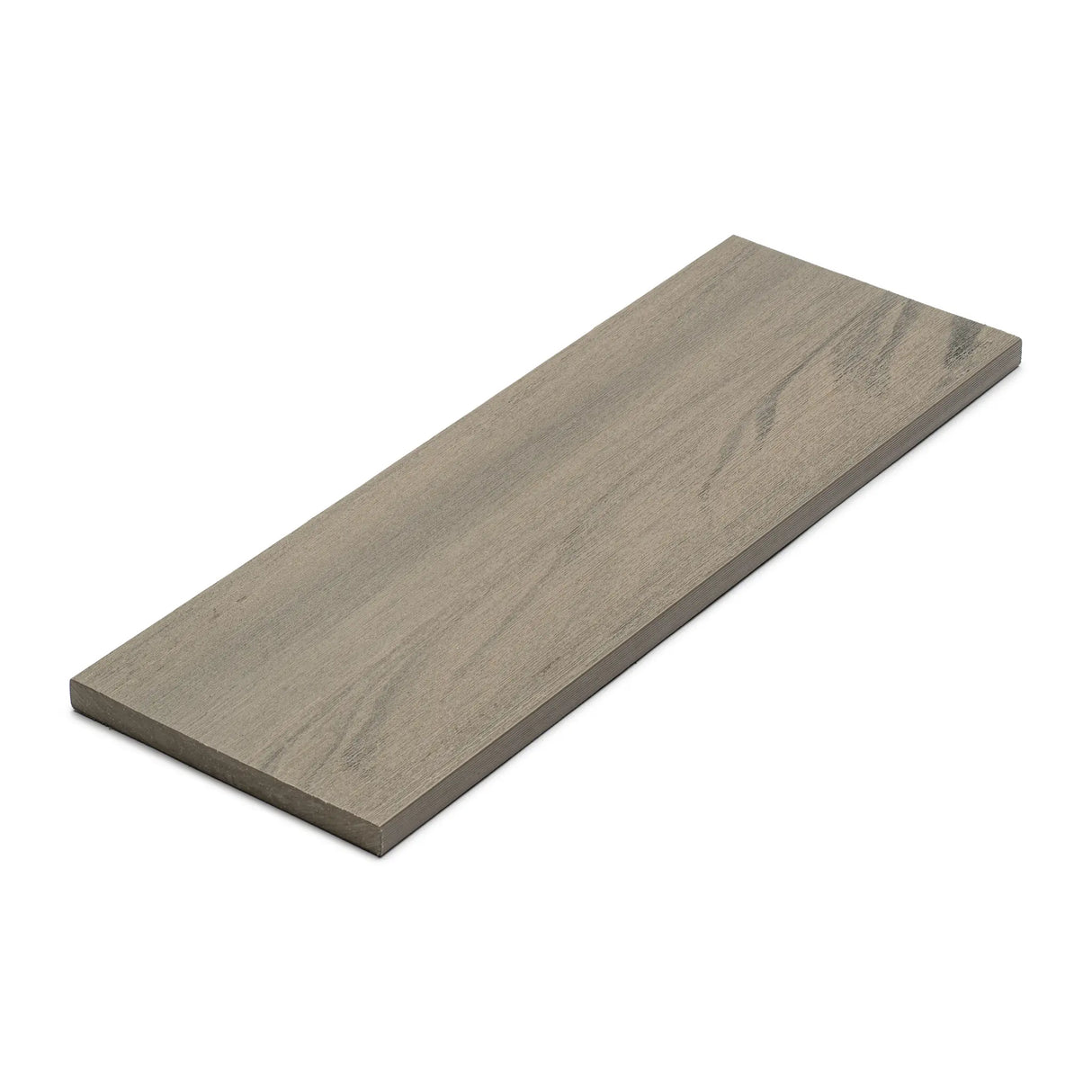

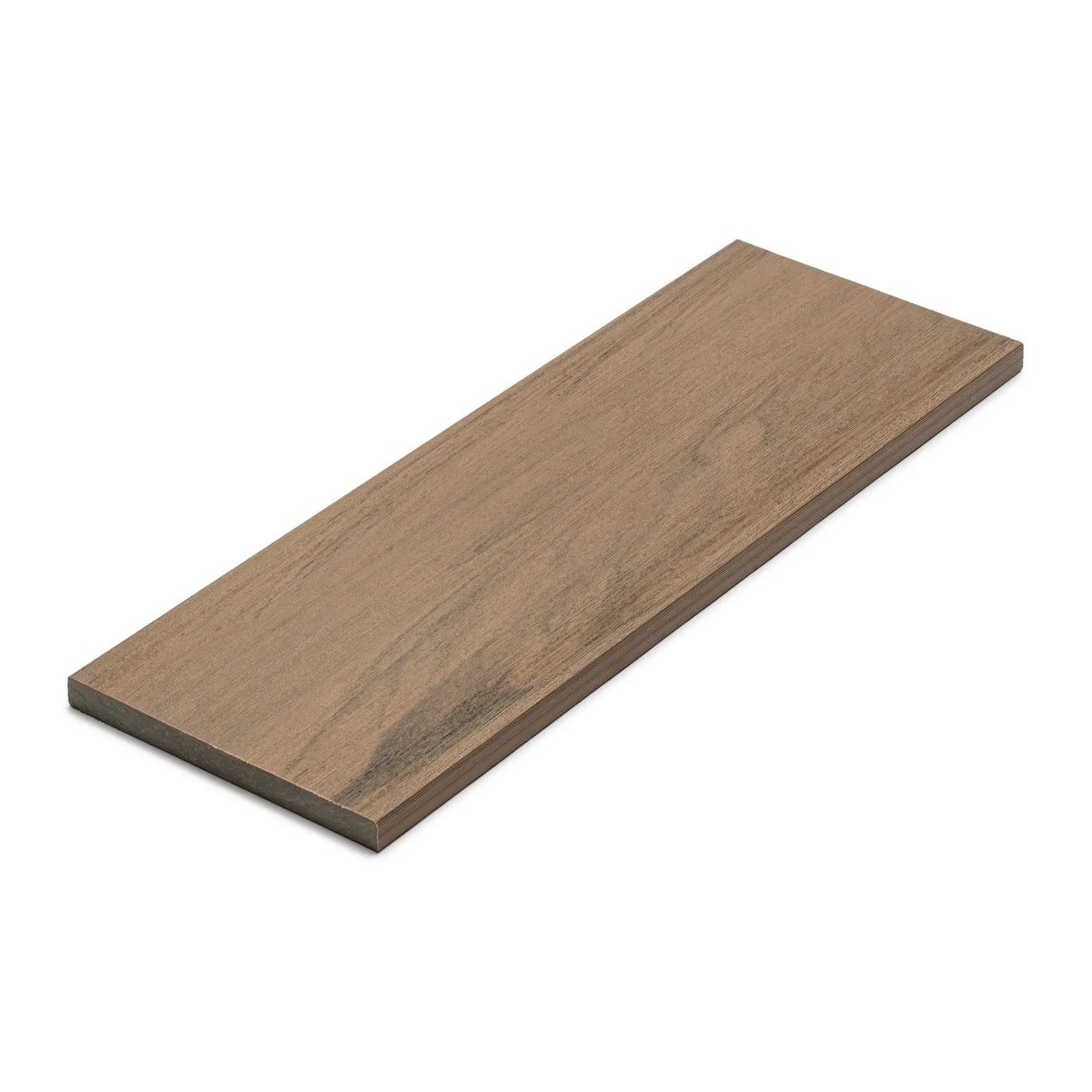

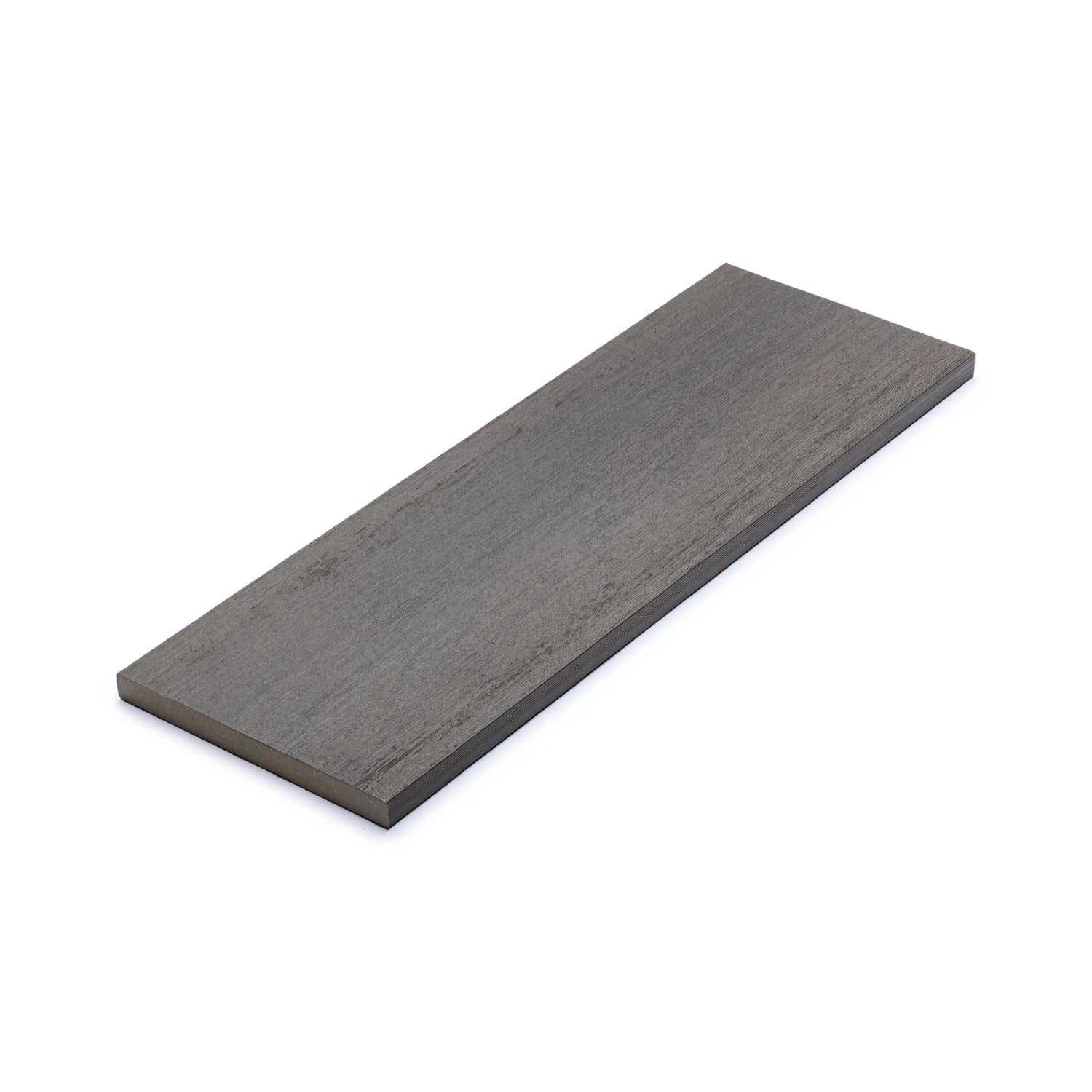

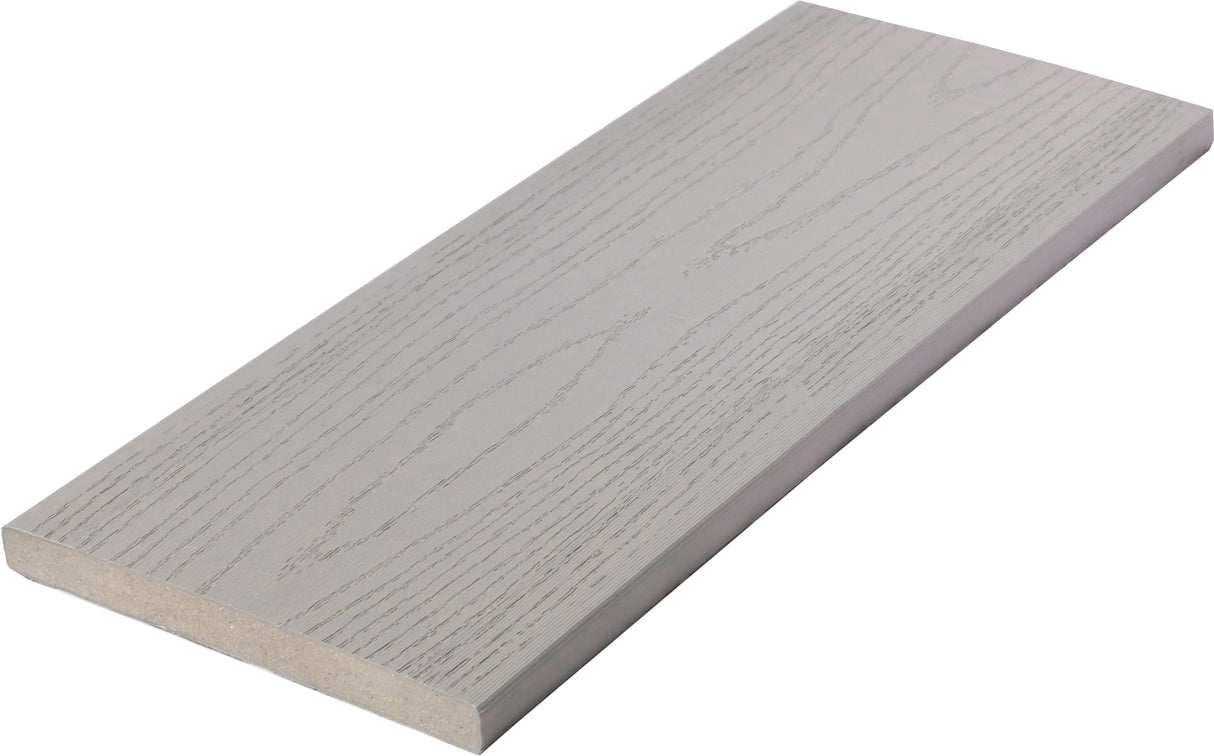

Fascia Board Specifications

• Fascia for TruEcono/TruNorth Series deck boards $5.25/ft - Hazelwood, Ash Grey, Tigerwood, Amazon Grey, Tropical Walnut, Brazilian Cherry, Stone Grey, Mocha, Caramel, Bordeaux (Use Fascia Screws Stainless #9 x 1-7/8")

• For TruEcono/TruNorth: 1 x 8 x 12' Nominal Size (Actual is 5/8" x 7 1/2" x 12')

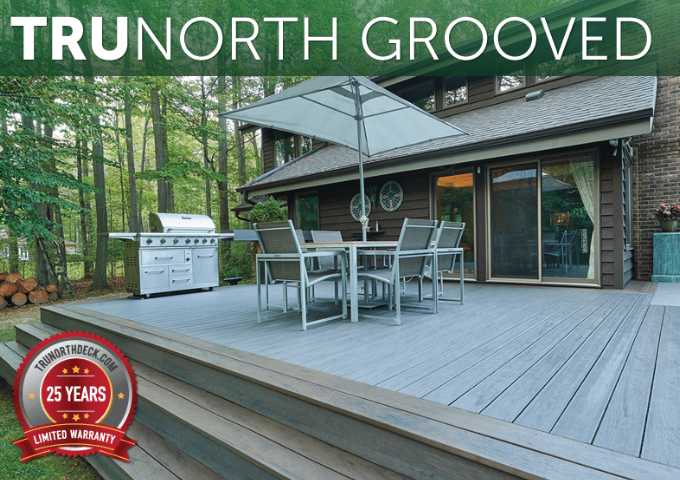

Grooved Boards

Solid grooved board on both sides with Slide & Go® fastening clip application and capped to protect the color from staining and fading over time.  Grooved clipped boards are not recommended to be installed butt end to butt end. For butt end to butt end installation, use square edge boards.

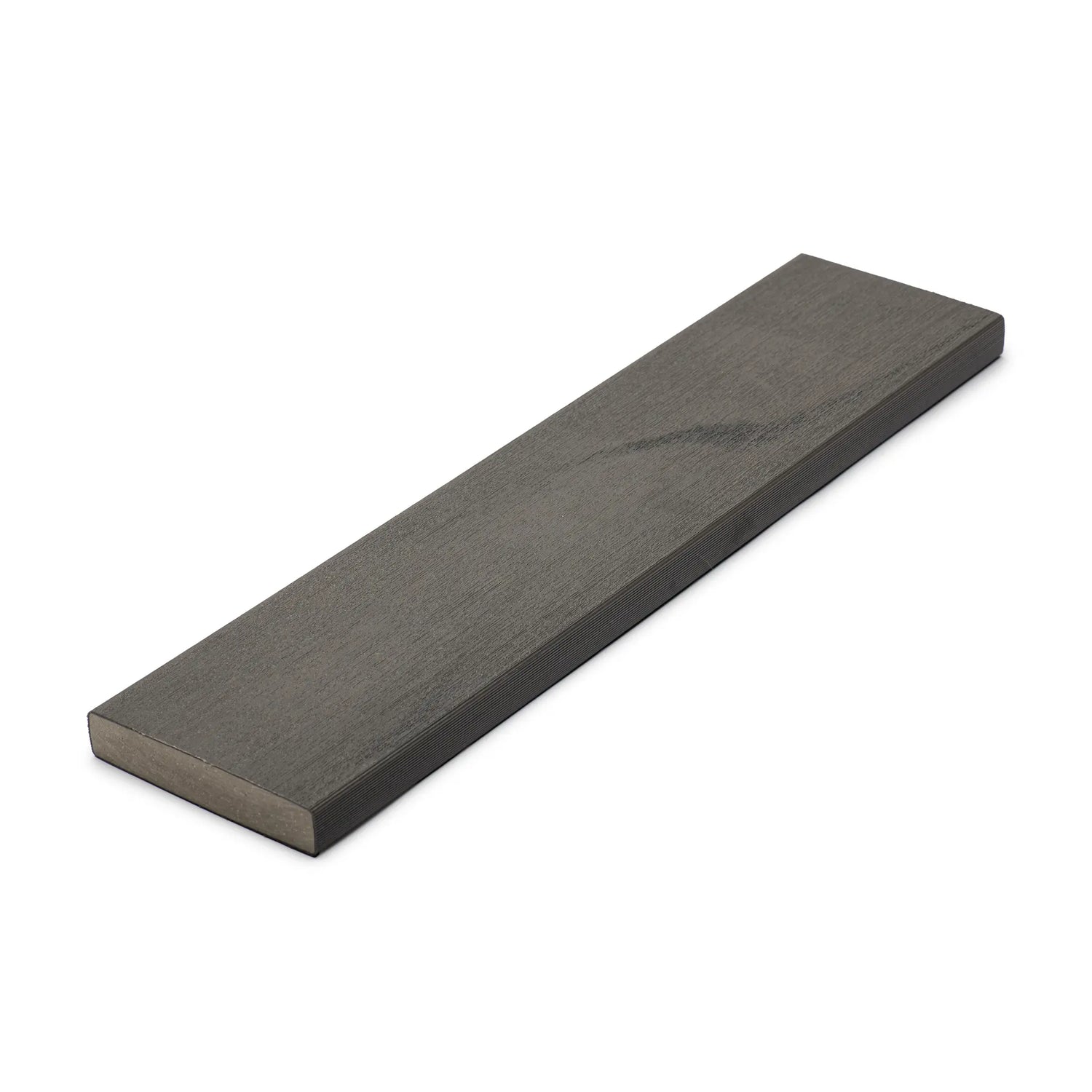

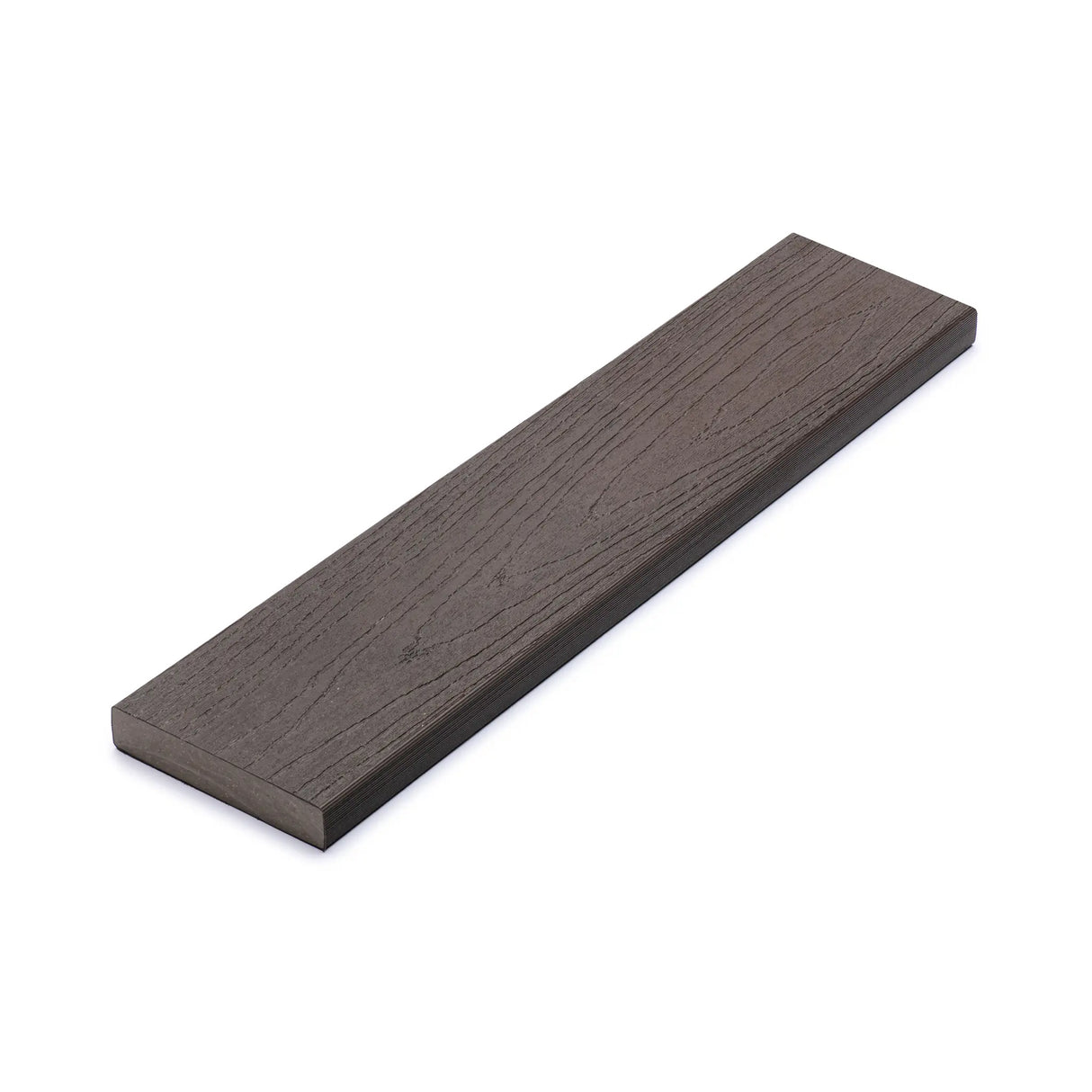

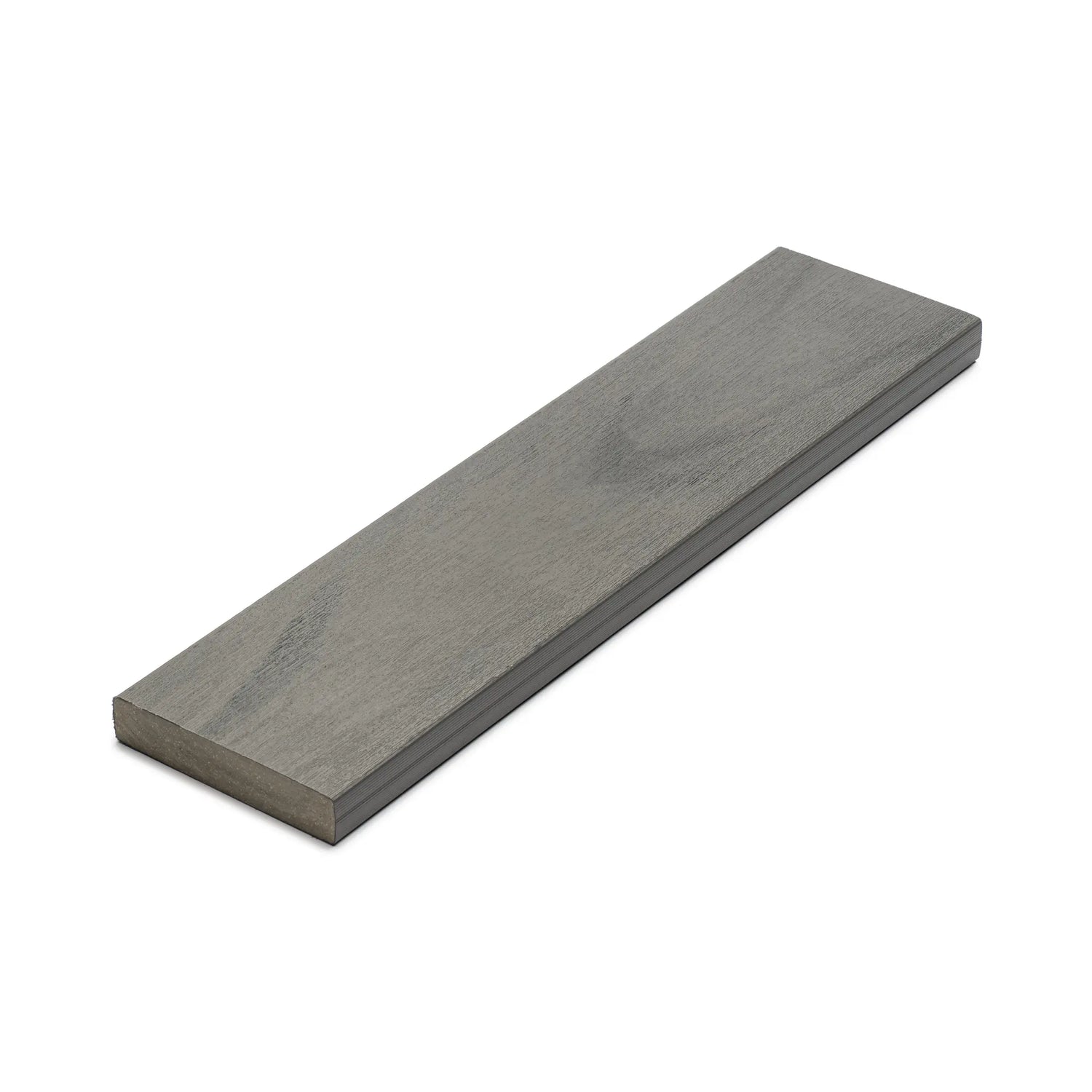

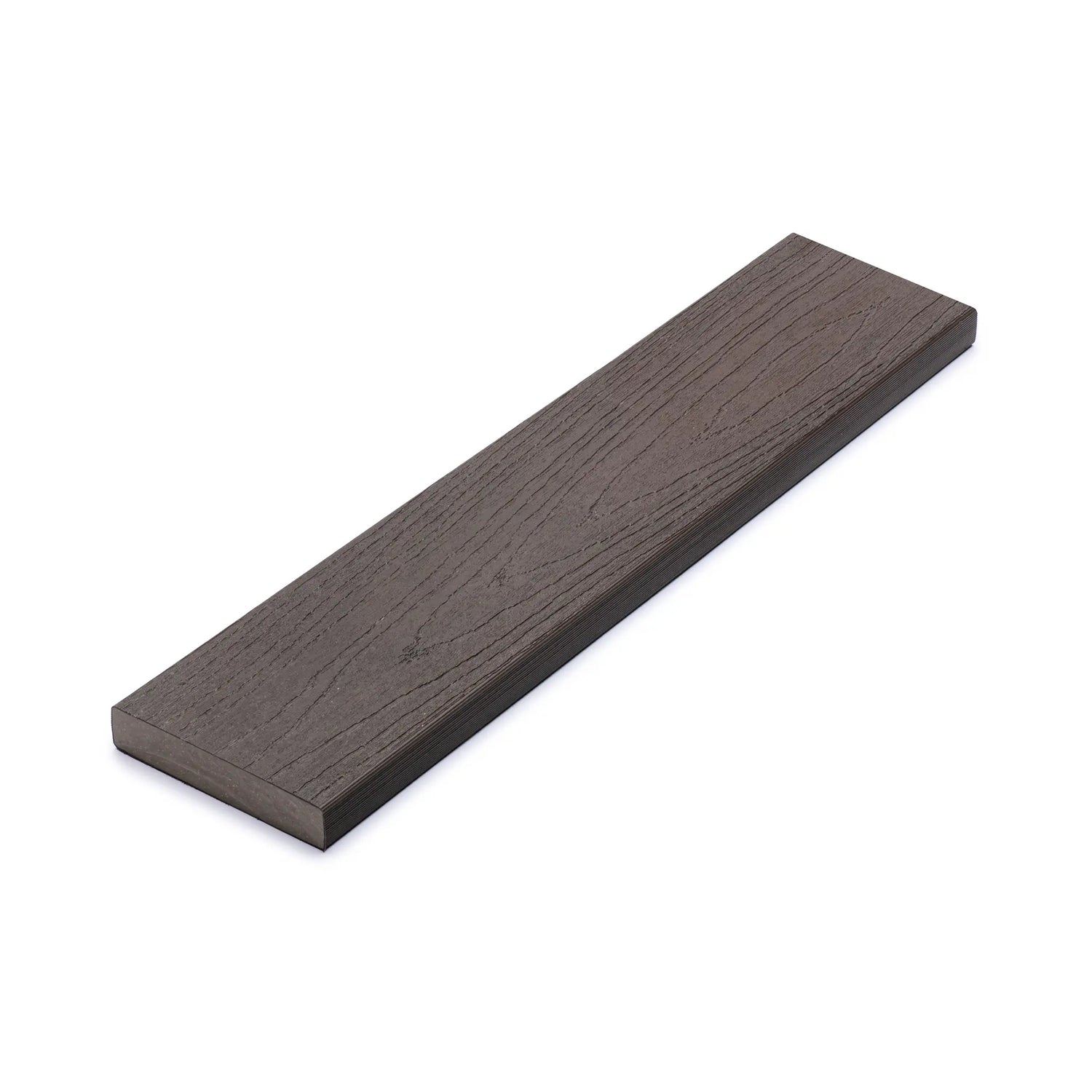

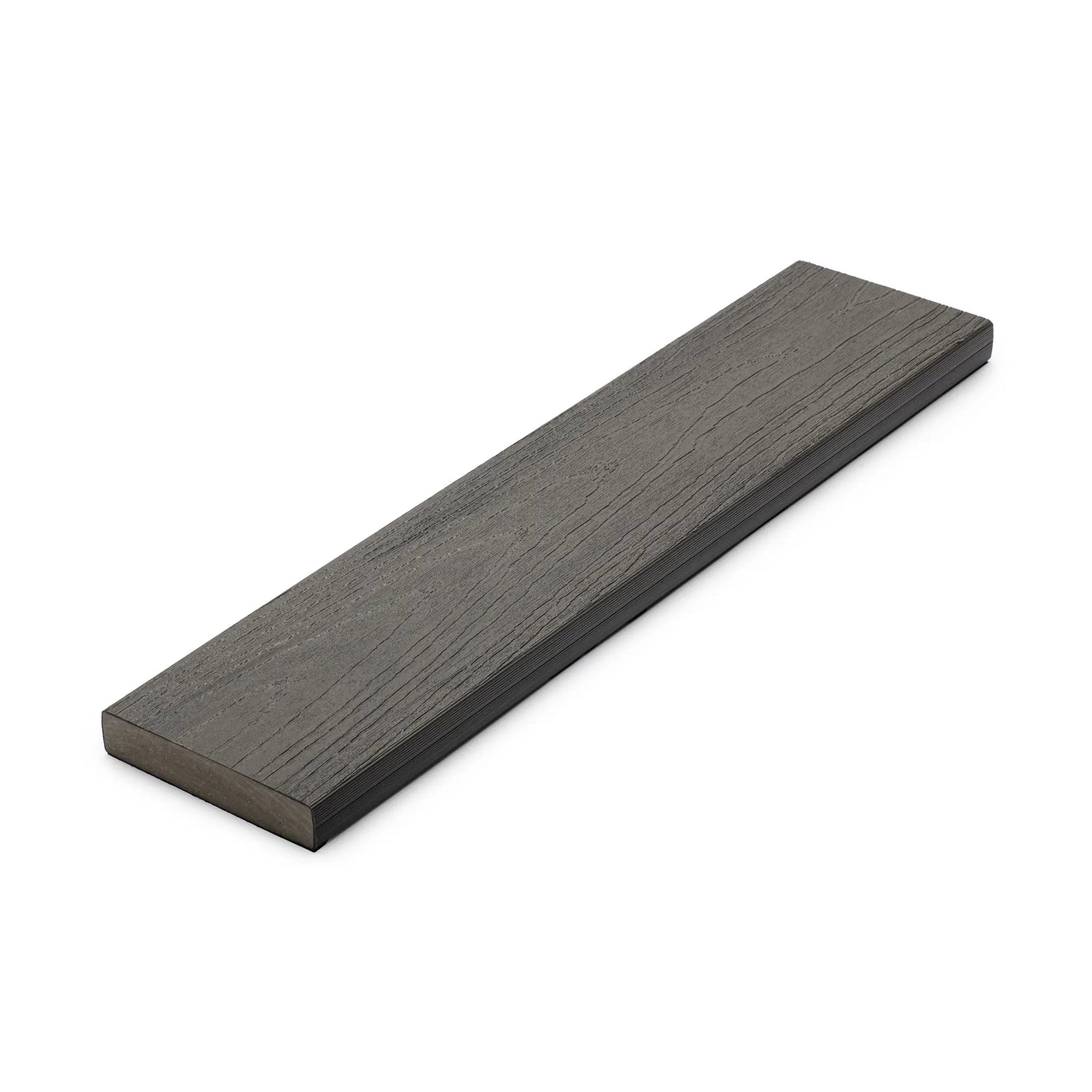

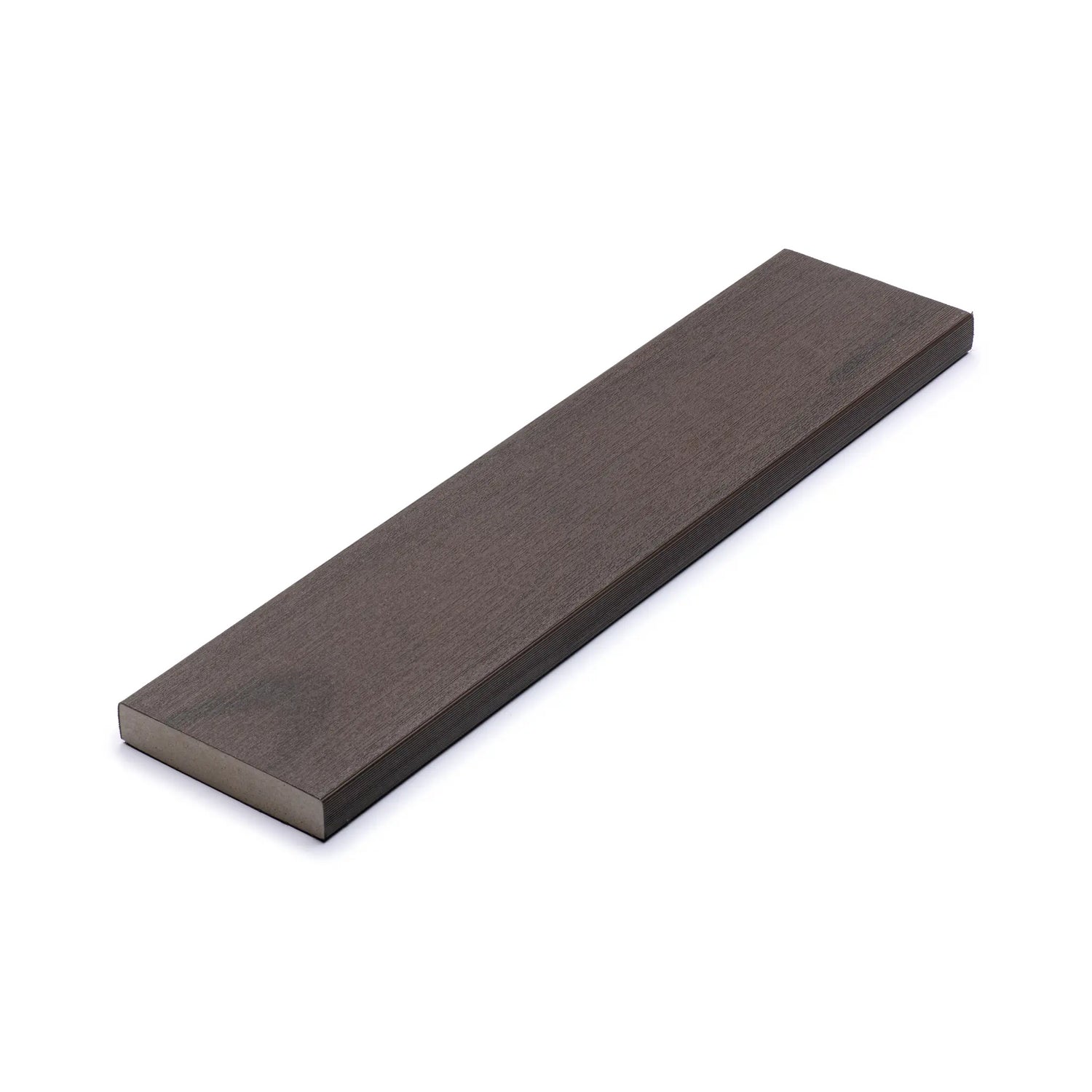

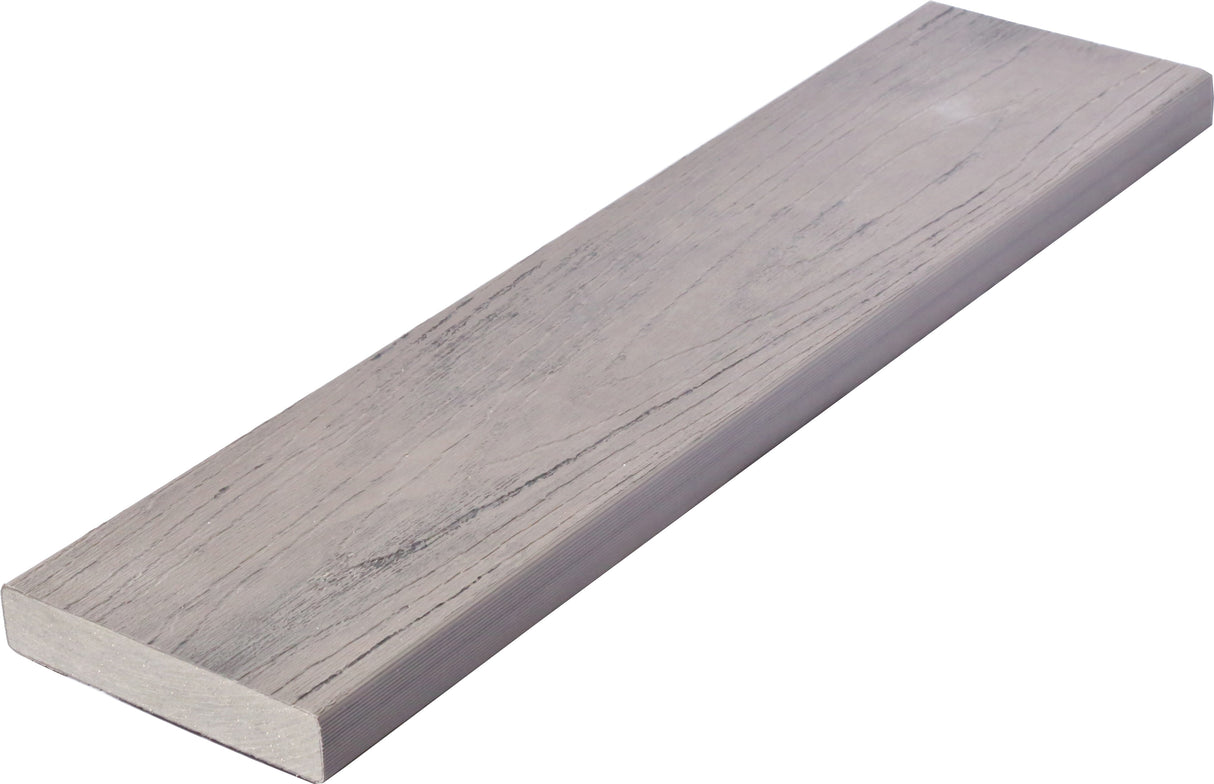

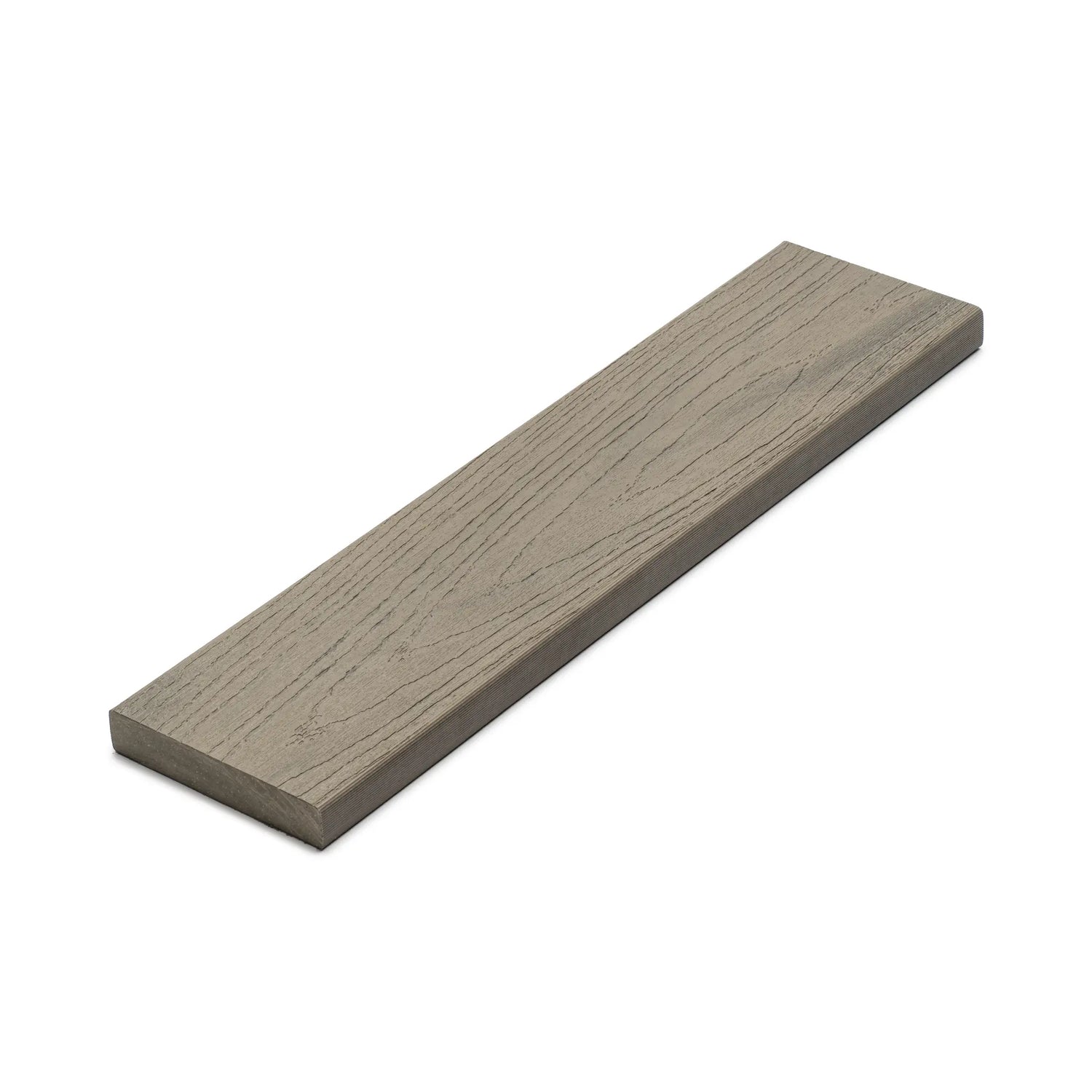

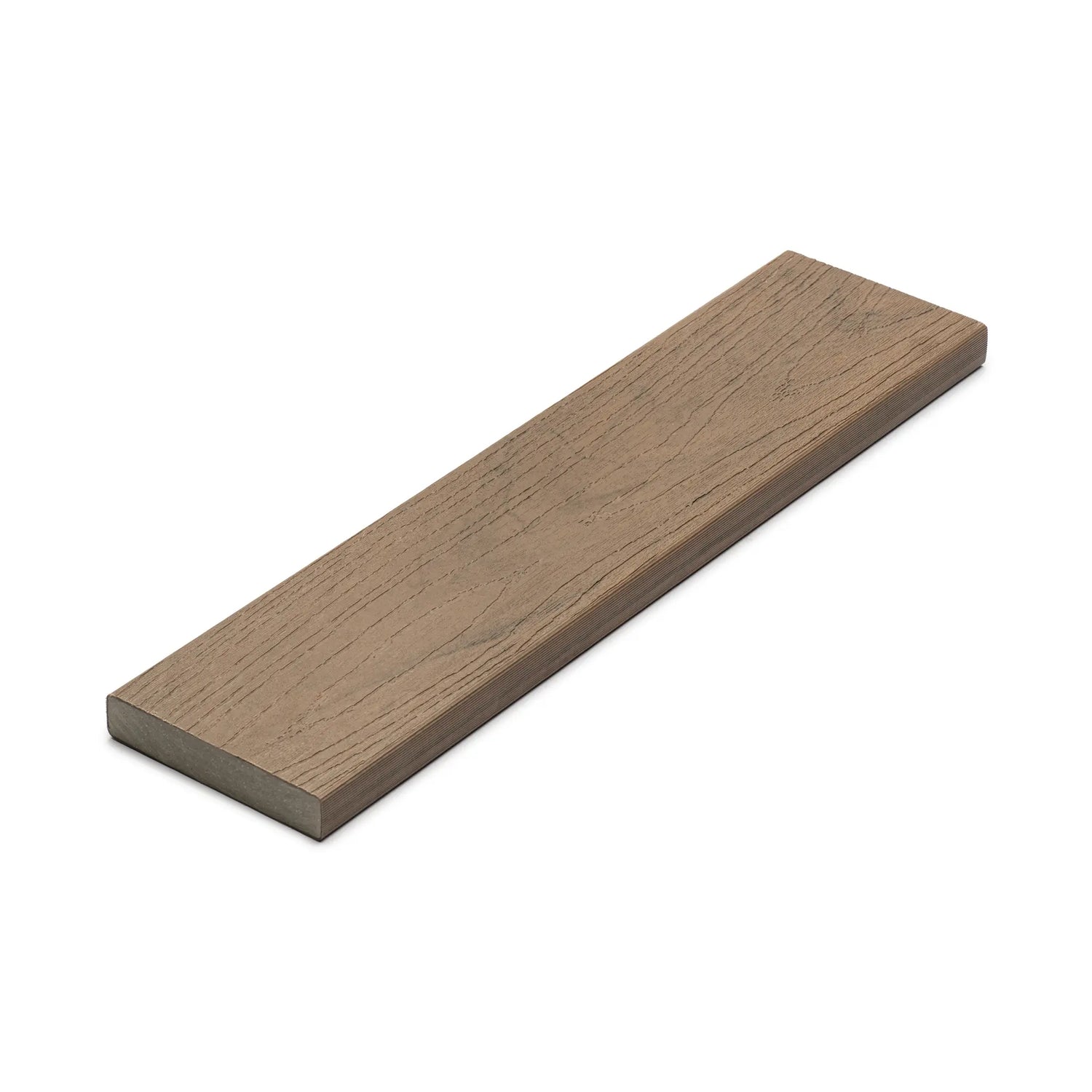

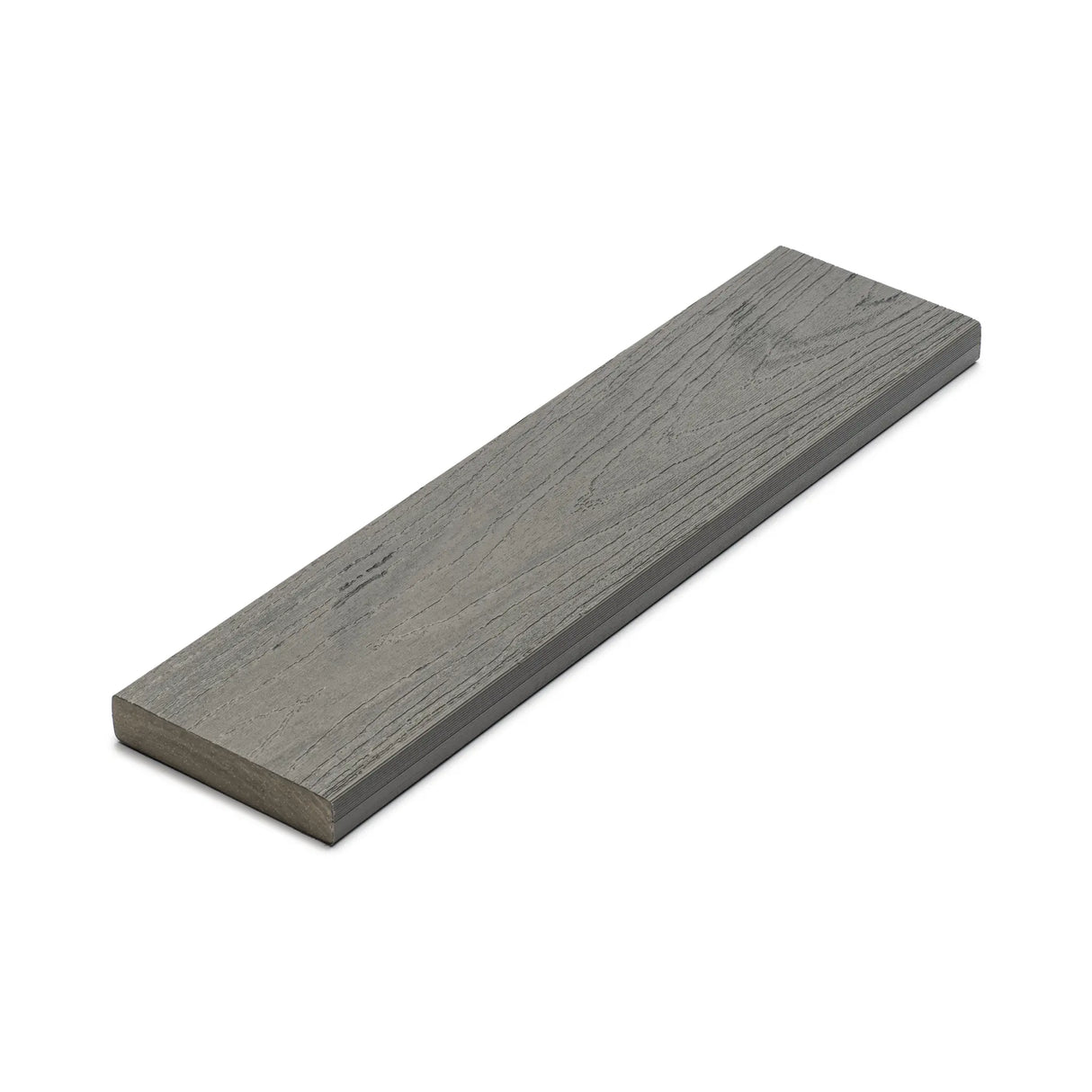

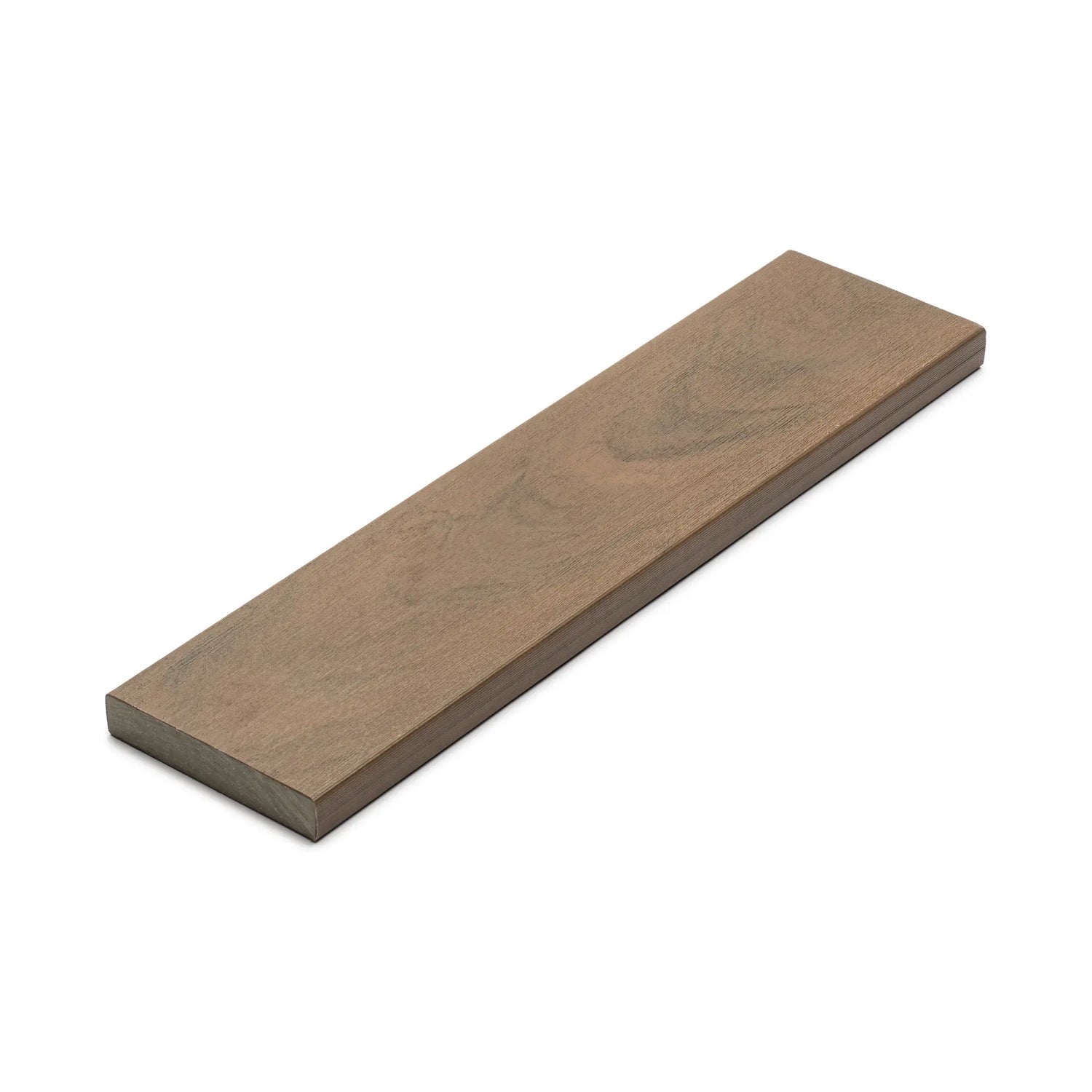

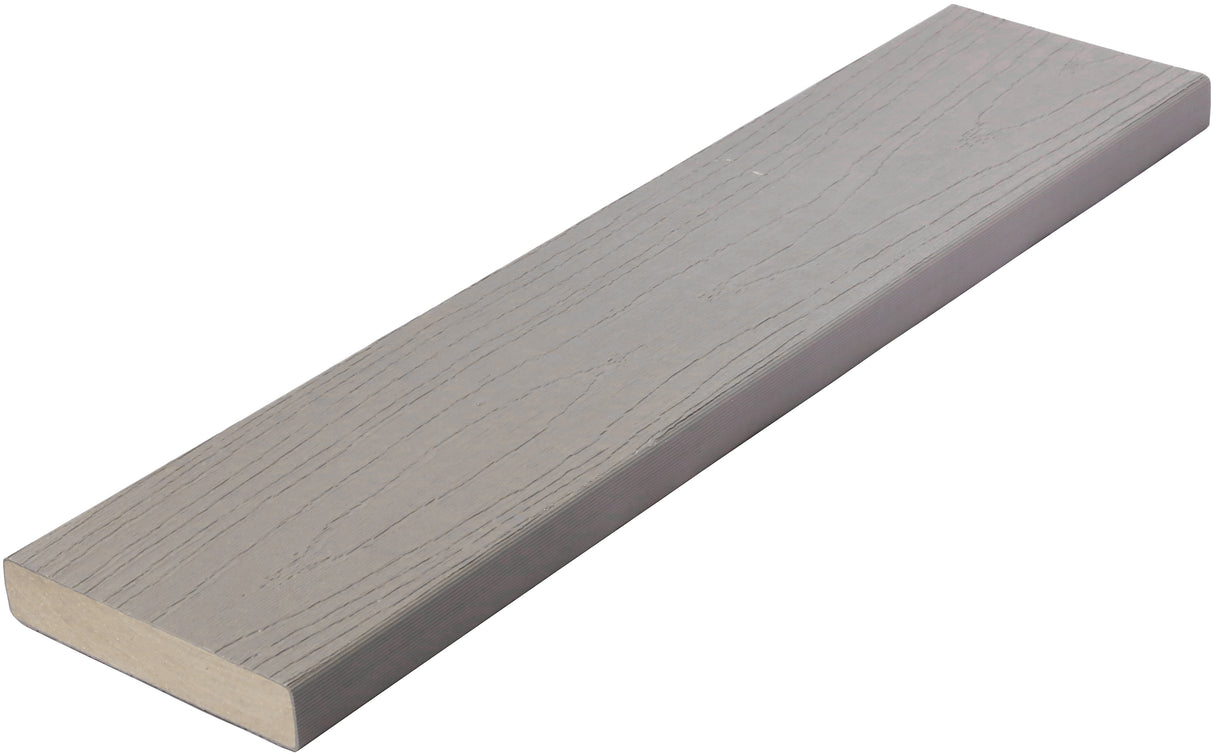

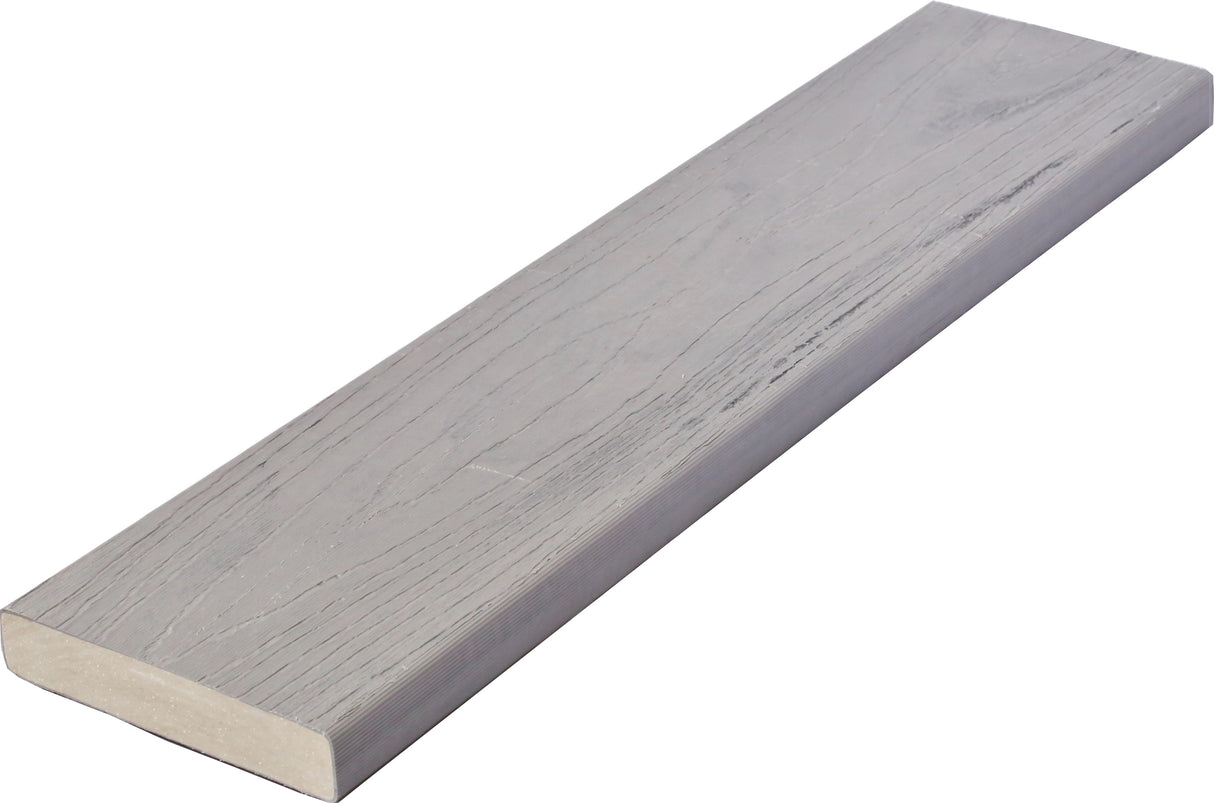

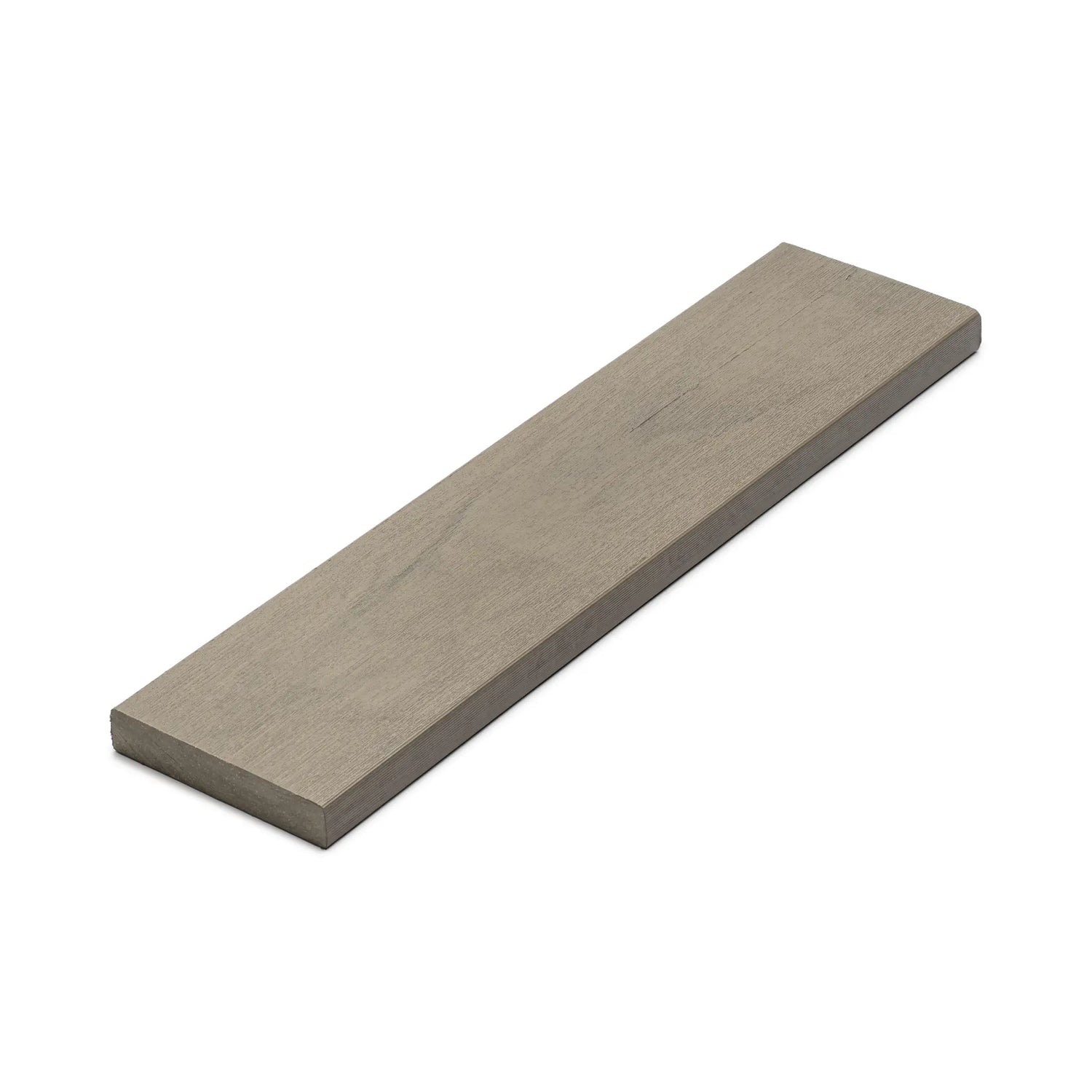

Square Edge Boards

Solid deck board capped on both sides to protect the color from fading and abrasion over time. These boards can be used on stair treads, when picture framing a deck, and for breaker boards. Secured by surface fastening. Deck boards can even be used in a butt end to butt end application using recommended installation guidelines.

Advantages:

• Heat blocking capping

• No wood filler used

• Woodgrain appearance

• Long-lasting and durable

• No painting, staining, or sealing

• No splinters, slivers, or revealing nails

• Resistant to rotting, mold, fungi & pests

• Simple Slide & Go® fastening system

• 25 year limited warranty including Stain and Fade warranty

• CCMC (Canada) & ICC  (USA/International) building code Approved

 Don't know how much material you need?

To calculate the number of linear feet of decking needed, measure the square footage of your deck and multiply that by 2.28. Depending on the complexity of your deck it's advisable to add 10% for cut-off waste (Example: 10 ft. x 10 ft. = 100 square ft. x 2.28 = 228 linear feet plus 10% or 23 ft equaling 251 ft total). If you are ordering 12' boards, divide 12' into 251ft to calculate your quantity of boards, which would equal about 21 boards (this would be your quantity ordered). We have, however, made this easy for you by automating this calculation on this product page. Please note that the calculated accessories also have smaller packages in the accessory section if required.

To calculate how many fastening clips required, calculate 2.5 clips per square foot when joists are on 16” centers and 5 clips per square foot when joists are on 12” centers. The automated calculations on this page assume 16" centers, so if you're using 12" centers, please manually calculate your requirements and adjust the quantity accordingly. Please note that the automated calculations are used as a guide and we do not guarantee 100% accuracy on your requirements. We are not liable if you over or under-order your materials and any returns must comply with our returns policy.

Need to see deck photos for color ideas? See our idea gallery.

Want a free sample? Click here

Need a deck builder? Contact Us

How to install composite stairs video:



 Technical documentation

ICC-ES Evaluation Report (USA)

INTERTEK Code Compliance Research Report Thermal & Moisture Protection CCRR-1019 (USA)

Enviroboard Decking Structural Report





Installation Guide Download:

---

Installation Videos:
